5-1/2" Emblem Collection Surface Mount LED in White
Image may not reflect selected features
/vendors/149/large/PROG_P810027_028-30_PRODIMAGE_1200.jpg
additional image
additional image
additional image
additional image
additional image
5-1/2" Emblem Collection Surface Mount LED in White (AM578)

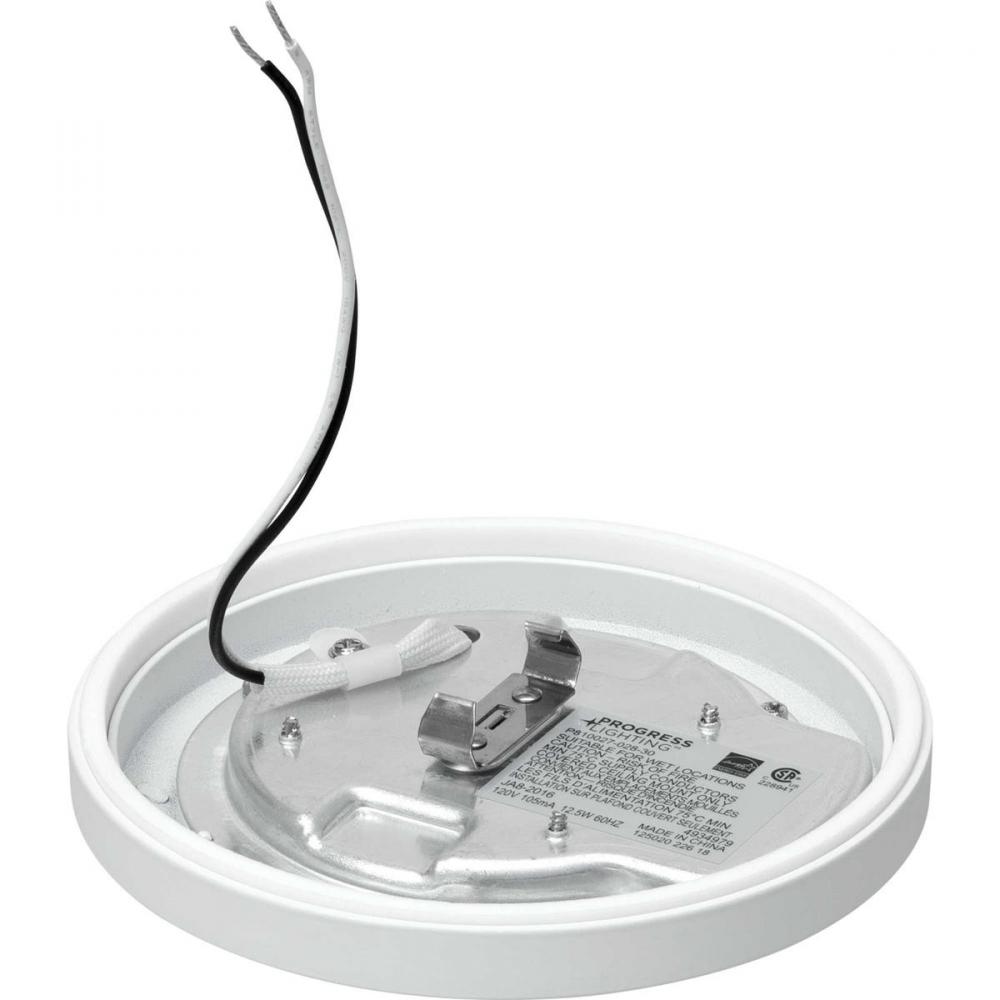

Revel in the brilliant combination of easy installation and a sleek, modern lighting aesthetic offered by our Emblem Surface Mount LED Collection. A symbol of clean, classic designs with smooth, eye-appealing curvature, Emblem provides you with familiar lighting shapes and functional features engineered for both outstanding performance and unparalleled longevity. An excellent choice for general ambient lighting, each polished design features a smooth, slightly tapered trim ring surrounding a single, integrated LED light source. Each trim ring is available in two different sizes and finishes to help meet your unique design needs. Enjoy the unmatched level of glare control offered by the fixture’s diffused polycarbonate lens that also hides any unwanted LED pixilation. Each light fixture is home to an integrated AC LED light engine that seamlessly installs to a variety of ceiling pan junction boxes to give you added flexibility when it comes to creating your design vision. The surface mount will also satiate the cravings of any environmentally-aware and cost-savvy buyer with the fixture's long-lasting, 50,000-hour LED life span and 80% energy savings.
Downloads
Product Specification
Item #
AM578
Dimensions
Height: 0.81"
Width: 5.50"
Length: 5.50"
Additional product details
Category
Exterior , Flush Mounts
Subcategory
Exterior Flush mounts , Outdoor Flush Mounts
Finish
White
Style
Transitional
Option
Energy Efficient , Energy Star , Title 24 , Wet Rated , LED , Title 20
Voltage
100-120
Lumens
450-800
Mount Type
Flush Mount
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Close-to-Ceiling
Finish
Satin White
Style
Modern;Transitional
Option
Energy Efficient , Energy Star , Title 20 , Title 24 , Wet Rated
Family
Emblem
Glass
Diffused
Voltage
120
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Bulb Type
LED
Introduction Date
01/01/2019
Kelvin
3000
Length
5.50
Lumens / Light Output
750
Material
Die-Cast Aluminum
Ship Carton Height
6.00
Ship Carton Length
5.68
Ship Carton Width
1.37
Ship Weight
0.64
Special Features
Integrated AC LED technology 3000K, 90 CRI, 750 lumens (delivered);Die-cast aluminum construction with a powder coat paint finish;Diffused polycarbonate lens controls direct glare from the LEDs;Dimmable to 10% brightness with many Electronic Low Voltage (E
Vendor Ship Method
Non UPS Shippable False
Warranty
5-year Limited
Weight
0.55
Americans with Disabilities Act
No
Bulb Base
LED
Bulb CRI
90 CRI
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Round
Certified Listed Location
Wet Location Listed
Construction Material Main Part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Dimming Compatability
Lutron_Nova T VTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta Wireless;IDevices_IDEV0009;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH-WH;Eaton/Cooper_DAL06P;Lutron_Ariadni AYLV-600P;L
Dimming Protocol
Triac/Forward Phase;ELV/Reverse Phase
Dimming Range
10%
Energy Efficient
Yes
Energy Star
Yes
Finish Type
Painted
Frequency Rating
60 Hz
Glass Shape
Lens
Grounded Convenience Outlet included
No
JA8
2016
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Lamp Wattage
12.5
Lens Shade Material
Polycarbonate
Lumens per Watt
60.00
Mount location
Wall Or Ceiling
MTO
No
Operating Temperature Celcius Max
30 °C
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Room Type
Hall & Foyer;Kitchen;Living Room;Bathroom;Bedroom;Dining Room
Safety Rating
cCSAus
Starting Temperature Minimum
-25 °C
Sub Brand
Progress LED
Title 20
Yes
Title 24
Yes
Weight of Fixture Exceeds NEC Limits
No
Finish
Additional options that would change other selections
Included Items
Bulbs: (1) x 12.5 Watt LED
Call for Price
Qty:
BASE PRICE:
$
43
13
/ / 1
($43.13 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 203288 items available.
