Product Overview

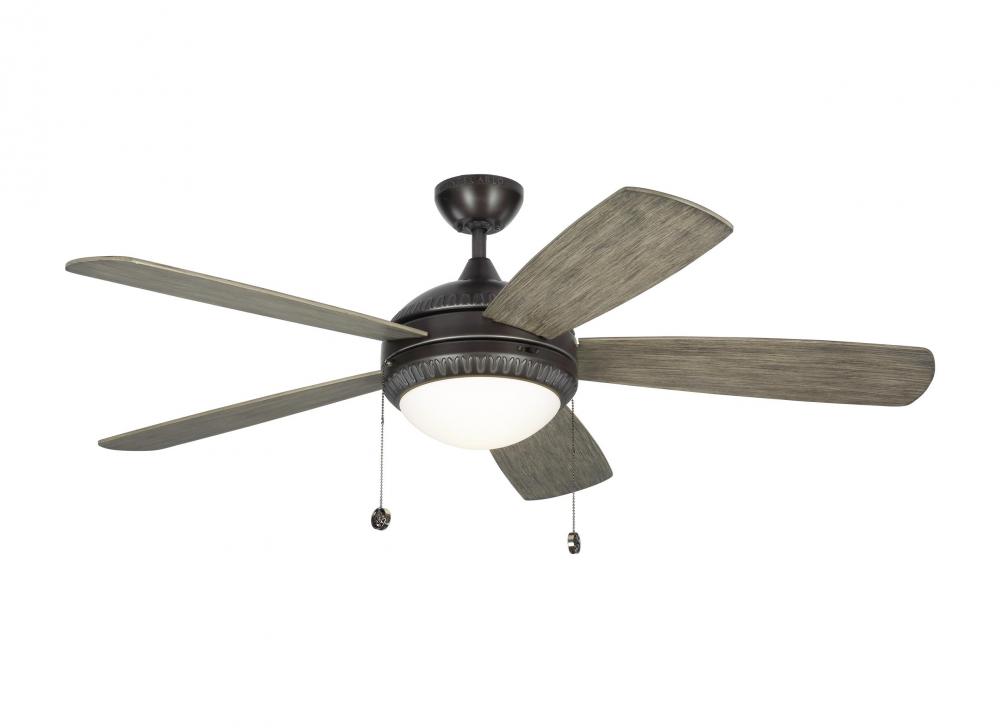

The Discus 52 LED in Aged Pewter features a 153.0 X 18.0 3-speed motor with a Twelve-degree blade pitch. We've expanded the best-selling Discus 52 fan by adding traditional detailing to the housing that elevates the design. The 5-blade Discus features an integrated 20W LED light with 715 lumens output, pull-chain operation with three speeds and manual reverse.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Pewter

Style:

Traditional

Option:

Title 24

Dry Rated

LED

Voltage:

100-120

Glass Finish or Style:

Opal

Lumens:

450-800

Number of Blades:

5 Blades

Kelvin:

2501-3000

Location Rating:

Dry Rated

Wattage:

20w

Refinement Options

Category:

Ceiling Fan

Finish:

Aged Pewter

Style:

Traditional

Option:

LED

Title 24

Family:

Discus

Glass:

Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Blade Finish:

Light Grey Weathered Oak

Blade Pitch:

12

Blade Span:

52

Bulb Type:

LED - Array

Canopy:

5.13 Dia

Introduction Date:

01/01/2018

Kelvin:

2700

Keyword(s):

Bedroom, Family Room, Office

Light Kit Included:

Yes

Lumens / Light Output:

715

Motor Size:

153 x 18 mm

Motor Type:

AC

Order Minimum:

1

Remote Control Included:

No

Ship Carton Height:

8.75

Ship Carton Length:

23.5

Ship Carton Width:

13.25

Ship Weight:

21.9

Sold By:

EA

Vendor Ship Method:

Parcel

Weight:

19.2

Blade To Ceiling Height:

10.6

Bulb Base:

19 - Integrated

Bulb CRI:

90

Bulb Dimming Range Max:

100

Bulb Dimming Range Min:

10

Bulb Included:

Yes

Bulb Light Source Name:

LED

Bulb Rated Life:

50000

Bulb Watts Rated:

20

Canopy Style:

Downrod

CFM High:

4758

CFM Low:

1892

CFM Watt High:

73

CFM Watt LOW:

135

Country of Origin:

China

Downrod Diameter:

0.5

Downrod Length:

4.5

Energy Star:

No

Fan Style:

Traditional

Freight Class:

110

LED:

Yes

Location Rating:

Dry Rated

Made To Order:

No

Max Ceiling Slope:

30

Max Wattage:

20 W

Maximum Blade To Ceiling Height:

10.6

Minimum Blade To Ceiling Height:

9.2

Minimum Ceiling Height Required:

7.88

Number of Blades:

5

Overall Height:

15.1

Qty Fabric Glass Shades:

1

Safety Rating:

cETL Approved

Shade Diameter:

9

Shade Finish:

Matte Opal

Shade Shape:

Round

Standard Efficiency:

83

Standard Energy Use Wave:

41

Standard Estimated Yearly Energy Cost:

11

Standard Weighted Average Airflow:

3415

Title 24:

Yes

TSCA Title VI Compliant:

Yes

Watts High:

65

Watts Low:

14

20W LED Light Kit, 3000K, 1060 Lumens, 90+ CRI

Available Finishes: Aged Pewter, Matte Black and Roman Bronze

Dry Rated

From the brand formerly known as Monte Carlo

Includes integrated 20W LED downlight

This product may be mounted on a sloped ceiling
